Microwave Assisted Facile Synthesis and Biological Evaluation of Novel 2-Indolyl -1, 5-Benzothiazepines

Anna P. G. Nikalje*, a, Mangesh S. Ghodkeb, Firoz A. K. Khana, Jaiprakash N. Sangshettia
a Department of Pharmaceutical Chemistry, Y.B. Chavan College of Pharmacy, Dr. Rafiq Zakaria Campus, Aurangabad 431003 (M.S.) India
b Department of Pharmaceutical Chemistry, R. C. Patel Institute of Pharmaceutical Education & Research, Shirpur-425405, Dhule (M.S.) India

Article Metrics

CrossRef Citations:
Total Statistics:

Full-Text HTML Views: 697
Abstract HTML Views: 478
PDF Downloads: 268
ePub Downloads: 143
Total Views/Downloads: 1586
Unique Statistics:

Full-Text HTML Views: 449
Abstract HTML Views: 229
PDF Downloads: 157
ePub Downloads: 78
Total Views/Downloads: 913

© Nikalje et al.; Licensee Bentham Open.

open-access license: This is an open access article licensed under the terms of the Creative Commons Attribution-Non-Commercial 4.0 International Public License (CC BY-NC 4.0) (https://creativecommons.org/licenses/by-nc/4.0/legalcode), which permits unrestricted, non-commercial use, distribution and reproduction in any medium, provided the work is properly cited.

* Address correspondence to this author at the Department of Pharmaceutical Chemistry, Y.B. Chavan College of Pharmacy, Dr. Rafiq Zakaria Campus, Rauza Bagh, P.B. No. 33, Aurangabad, Maharashtra 431001, India; Fax: +91 0240 2381129; E-mail: annapratimanikalje@gmail.com



The research work reports facile, eco-friendly microwave- assisted solvent free synthesis of coupled heterocyclic system 2-(1H-indol-3-yl)-4-substitued-2, 3-dihydrobenzo [1, 5] thiazepine derivatives obtained by cyclo condensation of 1-substituted-3(1H-indolyl)-2-propen-1-ones with 2-amino thiophenol in presence of eco-friendly catalyst zirconium(IV) oxy chloride, in solvent-free conditions. The reaction was completed in 3-6 minutes and gives better yields than the conventional synthesis which requires 6-8 hrs.

Result and Conclusion:

The newly synthesized compounds were evaluated for antihypertensive activity in Sprague- Dawley rats by tail- cuff method and compared with diltiazem, the standard antihypertensive drug. The data suggested that some of the compounds of the current series exhibited enhanced antihypertensive activity than the standard. As benzothiazepines are bioisosters of benzodiazepines, the synthesized novel indolyl-benzothiazepine derivatives were also screened for CNS activities such as CNS depressant activity by actophotometer and anticonvulsant activity by MES and PTZ model on mice. The title compounds have exhibited good CNS depression and anticonvulsant activity. The compounds thus have shown dual antihypertensive and CNS depressant, anticonvulsant activity and are biologically potential molecules. The molecular docking was performed for the synthesized compounds to assess their binding affinities to GABA-A receptor in order to rationalize their anticonvulsant activities in a qualitative way.

Keywords: 1, 5-benzothiazepine, Antihypertensive activity, CNS depressant, MES, Microwave-assisted, PTZ.


Over the last several decades, tremendous advances in basic and clinical research on cardiovascular disease have greatly improved the prevention and treatment of the cardiovascular diseases, the nation's number one killer of men and women of all races [1, 2]. Hypertension is a multi factorial disease frequently associated with other cardiovascular problems. None of the antihypertensive drugs available can cure all cases of hypertension. This situation causes a unique scenario in this area of therapeutic research: less recent approaches, which make use of drugs acting on the adrenergic system, diuretics, calcium antagonists, nitro-vasodilators and so on, have not yet been abandoned, while new compounds are still being developed today. Excessive vasodilatation results in hypotension, dizziness and headache Dihydropyridines are often associated with tachycardia and chest pain, whereas verapamil and diltiazem may cause bradycardia, also associated with additive cardio depressive effects. Keeping inview the present stressful lifestyle, eating habits, insufficient regular physical exercise, smoking and obesity most people are likely to suffer from disorders related to heart, such as congestive heart failure, angina, hypertension, arrhythmias etc, that necessitates study and search for more effective drug molecules.

The drug ‘diltiazem’ being used as a calcium channel blocker and modulator [3, 4], calcium channel antagonist [5], vasodilator [6], antihypertensive [7, 8], blood platelet aggregation inhibitor [9], antiarrhythmic [10], antiischemic [11], etc., possesses a 1,5-benzothiazepine nucleus having a p-methoxy phenyl group at position-2, a 4-oxo group with no substituent in the fused benzene ring. Beta blockers such as carvedilol contains indole, therefore, we thought it worthwhile to synthesize a new hybrid heterocyclic moiety containing 1, 5-benzothiazepine and indole ring coupled together with the hope to get enhanced antihypertensive activity. In addition, benzothiazepines are the versatile pharmacophores having various biological activities such as antimicrobial activity [12] CNS depressant, anticonvulsant activity [13, 14]. Valium or Dizepam, is 7-chloro-1-methyl-5- phenyl-3H-1, 4-benzodiazepin-2-one, a drug used as an anti anxiety agent, sedative, antipanic agent, antitremor agent and skeletal muscle relaxant. Benzothiazepine is an example of bioisosteric replacement of benzodiazepines, i.e., benzothiazepines has structural resemblance with benzodiazepines. Indole is the most important heterocyclic nucleus which has gained prominence in medicinal chemistry due to its diverse biological activities such as anticonvulsant [15-20] anti-inflammatory [21, 22], and antipsychotic [23] activities. A Hybrid drug which comprises the incorporation of two drug pharmacophores in one single molecule are basically designed to interact with multiple targets or to amplify its effect through action on another bio target as one single molecule or to counterbalance the known side effects associated with the other hybrid part. Due to the potential biological activities associated with these two moieties and in continuation of our earlier research work on 1,5-benzothizepines and indole [24, 25] it was thought worthwhile to synthesize and evaluate the novel benzothiazepine-indole derivatives in a single molecular frame work as shown in Fig. (1), for antihypertensive and CNS activities as well, with the hope to get better CNS depressant and anticonvulsant agents with lower toxicity. Molecular docking studies have also been performed for anticonvulsant activity of synthesized compounds with gamma aminobutryic acid-A (GABA-A) in order to identify possible binding interactions with the ligand. The present investigation is the report of facile, eco-friendly microwave- assisted cyclo condensation of 1-substituted-3(1H-indolyl)-2-propen-1-ones with 2-amino thiophenol in presence of catalyst zirconium oxy chloride, in solvent-free conditions under microwave irradiation to afford the coupled heterocyclic system 2-(1H-indol-3-yl)-4-substitued-2, 3-dihydrobenzo [1, 5] thiazepine derivatives and its biological evaluation as antihypertensive and CNS depressant anticonvulsant agents.

Fig. (1).

Designing protocol.



In recent years, one of the most straight forward protocols used for the syntheses of 1, 5-benzothiazepines has been the cyclo condensation reaction of α,β-unsaturated carbonyl compounds, such as chalcones with 2-aminothiophenols. Literature survey reports such reactions [26, 27] under various reaction conditions by using i) acidic medium-methanol/ethanol containing glacial acetic acid; ethanol saturated with hydrogen chloride gas; toluene containing traces of trifluoro acetic acid, ii) basic medium-pyridine or toluene containing piperidine and iii) neutral medium- anhydrous toluene or o-xylene. However, the combination of solvents having strong acid and long reaction time period makes these methods environmentally hazardous. Therefore, a simple, general and efficient procedure for the synthesis of this important heterocyclic system is required. The application of microwave irradiation to organic synthesis has been focus of considerable attention in recent years and is becoming an increasingly popular technology [28]. In the present work, we have synthesized the coupled molecules containing indole and 1, 5-benzothiazepine nucleus where indole was used as starting material and benzothiazepine ring was developed on the indole ring, in solvent free conditions in presence of eco-friendly catalyst zirconium (IV) oxy chloride. Zirconium (IV) oxy chloride is an efficient Lewis catalyst used in various transformations, such as electrophilic addition reaction of indole with aldehydes /ketones to afford bis indolyl methanes in good yield [29]. However, there are no reports of its use as a catalyst for synthesis of indolyl nucleus coupled with 1, 5-benzothiazepine nucleus. This eco-friendly catalyst is cheaper in cost and is water-soluble, hence it is easy to remove off from the reaction mixture. In this regard, it was planned to introduce formyl group in the indole ring to form indole-3-carbaldehyde, and condense with various aromatic ketones to form chalcones or 1-substituted-3(1H-indolyl)-2-propen-1-ones, and their cyclo condensation with 2-aminothiophenol to give 1, 5-benzothiazepine bearing indole moiety at C2 position and various aromatic substituent’s at C4. Final compounds 2-(1H-indol-3-yl)-4-substituted-2,3-dihydrobenzo- [1, 5] thiazepine 4(a-o) were synthesized as outlined in Scheme 1 under microwave irradiation in solvent free condition, following green chemistry principles in good yields and enhanced reaction rates. Commercially available starting material indole 1 was reacted with phosphorus oxychloride and dimethylformamide to form indole-3-carbaldehyde. Formylation of 1 according to a procedure reported by Vilsmeier-Haack afforded indole-3-carbaldehyde 2. Further, Claisen- Schmidt condensation of 2 with various ketones and substituted acetophenones in the presence of ethanol and sodium hydroxide forms chalcones or 1-substituted-3(1H-indolyl)-2-propen-1-ones 3(a-o). Cyclo condensation of chalcones 3(a-o) with 2-aminothiophenol in the presence of catalytic amount of zirconyl oxy chloride afforded final compounds, i.e., indolyl -1, 5-benzothiazepine derivatives 4(a-o). The reaction was completed in 3-6 minutes at power selector level 700 Watts at temperature 80°C, which was recorded by temperature probe of the microwave. The microwave-irradiated solvent-free synthesis gives better yields in shorter time than the conventional synthesis which requires 6-8 hrs refluxing in solvent. The structures of the final compounds 4(a-o) were assigned on the basis of spectral analysis. The spectral data is given in Supplementary File. Characterization data of the synthesized derivatives is given in Table 1. Most of the derivatives were obtained in 65-82% yield by microwave technique within 3-5 min of reaction. Synthesized compounds were confirmed by FTIR, Mass, 1HNMR spectroscopic analysis. All the spectral data are in accordance with assumed structures. IR spectra were scanned on FTIR-PS 4000, within 4000-400 cm-1 wavelength range. KBr power technique was used for sampling purpose. In the IR spectra of indole-3-carbaldehyde –NH stretching occurs at 3448cm-1, -CHO stretching 2710cm-1; in case of NMR spectra multiplates observed at 7.2- 8.1 δ ppm for aromatic protons, singlet obeserved at 9.7 δ ppm for CHO and singlet at 10.8 δppm for –NH proton of indole, mass peak observed at 145 which confirms the formation of indole-3-carbaldehyde.

Table 1.

Physical characterization of final indolyl -1, 5- benzothiazepines 4(a-o).

Compounds R Time (min) Yield (%)(Microwave) mp (0C) Molecular formula
4a CH3 3.5 75 80 C18H16N2MS
4b C2H5 3 82 100 C19H18N2S
4c C6H5 5 65 110 C23H18N2S
4d 4-ClC6H4 4 65 90 C23H17N2C1S
4e 4-FC6H4 3.5 74 65 C23H17N2FS
4f 4-NO2C6H4 6 65 125 C23H17O2N3S
4g 4-OHC6H4 5 70 120 C23H18ON2S
4h 4-OCH3C6H4 4 75 90 C24H20ON2S

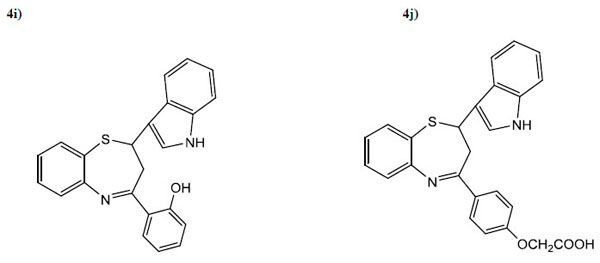

4i 2-OHC6H4 5 70 130 C23H18ON2S
4j 4-OCH2COOHC6H4 4.5 45 103 C25H20O3N2S
4k 4-NH2C6H4 4 75 80 C23H19N2S
4l 3-OCH3C6H4 4.5 80 110 C24H20N2OS
4m 3-OHC6H4 5 65 125 C23H18N2OS
4n 3,4-OCH3C6H3 4 75 105 C25H22N2O2S
4o 2-NO2C6H4 5 80 135 C23H17N3O2S

For the derivative i.e. 2-(1H-indol-3-yl)-4-ethyl-2, 3-dihydro-1, 5-benzothiazepine 4a, in IR spectra –NH stretching occurs at 3438 cm-1 , -C=N stretching at 1590cm-1 , for NMR spectra singlet for methyl group observed as singlet at 1.1 δ ppm , -indole –NH peak observed at 10.1 δ ppm. The formation of 1,5-benzothiazepines are confirmed by peculiar occurance of 1H NMR double doublets in the region 1.8-2.2 δ ppm due to methylene protons at C3 position and 3.2-3.8 δ ppm due to methine protons of C-H at C2 position. 13C NMR(CDCl3) δ ppm: 24.8, 41.3, 49.9,11.1,117.0,118.8,119.9,121.7,123.0, 125.8, 127.4, 133.4, 136.5, 137.6 and 164.6. Mass (m/z): 292.40 ,M+1 peak at 293.10, M+2 peak at 294.10.The spectral data confirms the presence of two heterocyclic moities ,i.e. indole and 1,5-benzothiazepines in the final synthesized derivatives.

Antihypertensive Activity

All the synthesized compounds were evaluated for antihypertensive activity by in vivo mean blood pressure method in Sprague- Dawley rats according to a previously reported protocol using tail cuff apparatus. The blood pressure of each animal was then recorded before and after treatment with standard drug and test compounds using tail cuff pulse detector ML125/R which is connected to Power Lab Data Acquisition System. The data was recorded using Lab Chart 6 software and compared with that of the reference standard diltiazem (5 mg/kg body weight). Data are expressed as Mean Blood Pressure ± SEM. All the statistical calculations were carried out using Graph Pad® Prism 3.0 (USA) Statistical Software. Data was analyzed by one way ANOVA followed by Dunnett’s test. Results were expressed as the mean ± S.E. In vitro assay could not be done as the compounds were water- insoluble. The results for anti-hypertensive activity are given in Table 2. The data indicate that the compounds exhibited enhanced activity which can be attributed to the presence of indole moiety at position C2 and also due to the presence of electron donating groups at C4 such as methyl, phenyl and substituted phenyl groups.

Table 2.

Mean systolic blood pressure before and after administration of the test compounds.

Group Mean Blood Pressure ± SEM
0 min. 15 min. 30 min. 60 min. 90 min.
Standard 4.62 ± 0.87 1.98 ± 2.15 5.21 ± 1.12 12.49 ± 0.30 33.66 ± 1.18
4a -0.77 ± 3.71 12.22 ± 8.58 18.82 ± 8.74 19.04 ± 5.01 8.34 ± 11.08
4b 1.89 ± 1.52 7.95 ± 1.95 -1.16 ± 1.67 1.06 ± 1.89 2.84 ± 2.50
4c -1.04 ± 0.213 3.01 ± 2.6 3.37 ± 2.47 21.80 ± 1.28 26.10 ± 1.69
4d -0.50 ± 1.26 -2.86 ± 2.93 -0.91 ± 5.50 -1.37 ± 3.343 1.46 ± 4.04
4e -0.58 ± 0.61 16.07 ± 0.05 14.20 ± 1.43 1.10 ± 1.28 4.61 ± 1.06
4f -4.34 ± 5.59 -2.01 ± 5.01 -8.04 ± 8.74 -31.20 ± 14.77 -31.77 ± 12.93
4g 1.86 ± 0.80 18.06 ± 1.69 26.71 ± 1.17 28.03 ± 0.94 32.17 ± 0.45
4h 0.78 ± 0.60 2.57 ± 1.13 37.55 ± 1.89 47.31 ± 1.51 49.97 ± 2.05
4i 0.24 ± 0.59 5.75 ± 1.01 21.23 ± 1.02 37.68 ± 3.29 27.30 ± 1.45
4j -1.18 ± 5.21 9.69 ± 4.42 13.56 ± 5.03 12.51 ± 6.94 9.36 ± 9.16

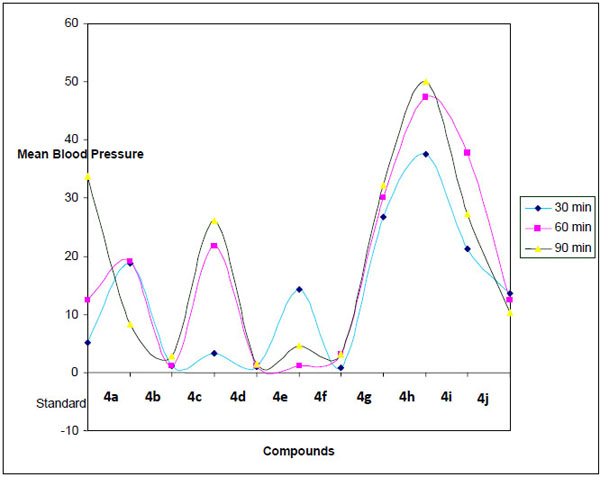

Fig. (2).

Mean blood pressure vs drug treatment after 30, 60 and 90 min.

Blood pressure was measured before and 15, 30, 60 and 90 min after drug administration, graphical result shown in Fig. (2). Diltiazem was administered as reference compound. Mean values in systolic blood pressure before and 15, 30, 60 and 90 min after drug administration were determined [30]. (CPCSEA Reg. No. CPN/ IAEC /08 /2008-09)

In comparison of the activities of compounds 4 (a-j) (5mg/kg), compound 4a (-CH3) has activity similar to the reference standard drug diltiazem. However, compound 4b (-C2H5) did not reduce the blood pressure significantly, indicating that –CH3 group is optimum for the antihypertensive activity. Compound 4c where Ar is un substituted phenyl showed the antihypertensive activity i.e. decrease in blood pressure similar to that of reference standard drug diltiazem.

Among the synthesized derivatives, compound 4d (para-chloro phenyl ), 4e ( para-fluoro phenyl ) and to 4f (para-nitro phenyl) with electron- withdrawing groups did not reduce the blood pressure significantly, demonstrating that the presence of electron withdrawing groups on the phenyl ring at position C4 decreases the antihypertensive activity.

In compounds 4g (p-hydroxy phenyl), 4h (para-methoxy phenyl) and 4i (ortho-hydroxy phenyl), reduced the blood pressure significantly. Thus, it was observed that electron- donating, polar groups at ortho or para position of phenyl ring increases the antihypertensive activity significantly, where as electron withdrawing groups on phenyl ring showed the reduced antihypertensive activity.

CNS Depressant Activity

The activity was measured as digital score using actophotometer [31] with the ip administration of drug (30 mg/kg) to mice.

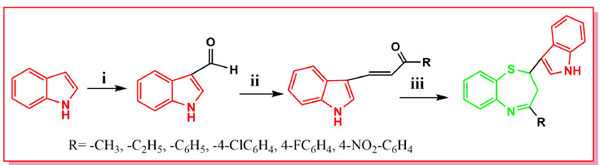

Scheme 1.

Reagents and conditions (i) dimethylformamide, phosphoryl chloride, NaOH, water, stirring (ii) ArCOCH3, ethanol, 40% NaOH, stir and kept for 24 hrs at room temperature (iii) 2-aminothiophenol, zirconyl chloride, microwave irradiation.

In behavioral activity using actophotometer, the compounds 4c, 4e having 30 mg dose have shown good CNS depressant activity when compared with standard drug diazepam. Test compounds with 100 mg dose, 4a, 4e, 4f and 4g have shown good CNS depressant activity when compared with standard (diazepam, 4 mg/kg). While compounds with 300 mg dose, 4a, 4b, 4d, 4e, 4f, 4h, 4i, 4j and 4k have shown good CNS depressant activity when compared with standard after 30 min. When activity compared after 4hr, comp 4a, 4b, 4c, 4j and 4k have shown good CNS depressant activity when compared with standard at 30 mg dose. Other compounds 4a, 4b, 4g, 4i, 4m and 4n have shown good CNS depressant activity at 100 mg dose and compounds 4a, 4b, 4c, 4e, 4g, 4j and 4m have shown good CNS depressant activity at 300 mg dose. All the results are presented in Table 3 and 4.

Table 3.

Evaluation of CNS depressant activity using actophotometer after 30 min.

Code Mean change in locomotor activity Mean ± SEM) % inhibition in locomotor activity
4a 73±6.221* 59.4±13.422** 25.6±1.965*** 50 70.60 77.73
4b  73±8.626** 87.6±4.434* 24.4±1.939*** 68.52 38.08 78.78
4c 41.2±5.490*** 89.6±5.240* 98.2±2.354ns 64.17 22.08 14.60
4d 78.4±12.205** 102.8±3.397ns 23.4±0.8602*** 31.82 10.60 79.65
4e 71±10.232*** 64±4.517*** 54.6±2.561*** 38.78 44.34 52.52
4f 72.4±8.880** 65.8±5.054*** 56.6±3.473*** 37.04 42.78 50.78
4g 103.4±2.421ns 67.8±5.791*** 68.4±4.686** 10.08 41.04 40.52
4h 113.4±4.118ns 80±3.536*** 60.4±5.483*** 10.09 30.43 47.47
4i 97.6±7.891ns 83.8±7.723* 63±7.987*** 15.13 27.13 45.21
4j 102.4±8.964ns 93±4.087ns 38.8±4.883*** 10.95 19.13 66.26
4k 106.8±4.883ns 109.2±6.530ns 37.2±4.224** 7.13 5.04 67.65
4l 91.4±22.879ns 74.4±7.089ns 94.2±5.652ns 37.91 35.30 18.08
4m 76.2±3.839*** 115.8±3.967ns 90.2±4.893* 33.73 1.73 21.56
4n 143.2±17.362ns 74.4±3.415* 37.4±2.502*** 45.43 35.30 67.47
4o 76.8±4.341*** 112.4±4.297ns 92±4.889* 33.21 2.26 20
D 30.2±2.922 47
C 115±7.791
Table 4.

Evaluation of CNS depressant activity using actophotometer after 4 h.

Code Mean change in locomotor activity (Mean ± SEM) % inhibition in locomotor activity
4a 40±9.965*** 33.8±1.655*** 26±2.168*** 46.14 54.50 44.21
4b 75.2±11.608* 46.8±5.324*** 54.8±10.017*** 39.54 62.37 55.94
4c 36.8±6.094*** 58.2±5.161*** 64±4.231*** 39.53 43.56 42.28
4d 84±7.817* 138.2±4.432ns 19±1.414*** 32.47 11.09 43.24
4e 133±13.657ns 98±3.347ns 51.8±12.212*** 6.91 21.22 58.36
4f 116.8±6.248ns 82.4±5.115ns 120.2±10.288** 9.32 33.76 3.49
4g 99.2±3.839* 77.4±5.662*** 63.4±5.605*** 20.25 37.78 49.03
4h 114.2±6.053ns 99.8±2.922* 71.8±3.089*** 8.19 19.77 42.28
4i 93±9.354ns 78.8±9.452* 74.6±11.365** 25.24 36.65 40.03
4j 73.4±2.619*** 93.4±5.335* 42±8.620*** 40.99 24.91 66.23
4k 45±8.444*** 93.4±9.903* 28±2.713*** 43.56 24.91 38.90
4l 182±9.706ns 128.2±2.375ns 134.8±9.431ns 4.6 3.53 8.36
4m 87.8±10.758* 73.6±7.891** 52.4±8.035*** 29.42 40.83 57.87
4n 42.6±1.364*** 34.2±1.020*** 24.6±2.561*** 45.17 41.63 43.89
4o 97.6±6.645ns 80.2±5.229** 118.8±11.795ns 35.53 21.54 4.50
D 75±11.150 47.42
C 124.4±5.758

Anticonvulsant Activity

All the tested compounds showed protection against MES test (Table 5) indicative of their ability to inhibit the seizure spread. Compounds 4g showed protection against the MES model at 30 mg/kg and compounds 4a, 4e, 4f showed protection at dose level of 100 mg/kg, while compounds 4b, 4c, 4h, 4i, 4n showed protection at dose level of 300 mg/kg after 0.5 h. Compounds 4d and 4l showed protection against the MES model at 30 mg/kg and compounds 4f, 4m showed protection at dose level of 100 mg/kg while compounds 4a, 4b, 4c, 4e, 4g, 4h, 4i, 4j, 4k and 4n showed protection at dose level of 300 mg/kg at 4 h. Compound 4m was found to be more effective but short acting as 4 h protection requires the dose of 100 mg/kg. The compounds 4f showed activity both at 0.5 h and 4 h period at dose level of 100 mg/kg indicating that compounds are effective and long acting. The compounds 4b, 4c, 4f, 4i and 4n showed activity both at 0.5 h and 4 h period at dose level of 300 mg/ kg indicating that compounds are less potent and long acting. The compounds 4d, 4l showed activity at dose level of 30 mg/kg and 4k and 4m showed activity at dose level of 100 mg/kg only at 4 h indicating that compounds have sustained release activity.

Most of the compounds were found to be active in the sc PTZ test (Table 5) a test used to identify compounds that elevate seizure threshold. The Compounds 4a, 4b and 4k showed activity at a dose of 100 mg/kg while, compounds 4g, 4h, 4i and 4n showed activity at dose of 300 mg/kg at 0.5 h. The Compounds 4a, 4b, 4h, 4i, 4k and 4n have shown activity at dose of 300 mg/kg at 4 h. No compounds were found active at dose level of 30 mg/kg. The compounds 4h, 4i and 4n have shown activity at 300 mg/kg at 0.5 h and 4 h indicating that these compounds have moderate activity. For several classes of CVS active substances, Hansch and Leo found that BBB penetration is optimal when the log P values are in the range of 1.5- 2.7, with 2.1mean value [32, 33]. In this study, we attempted to correlate the anticonvulsant activity of synthesized compounds with log P value. The compounds 4c, 4d, 4e, 4f, 4j, 4l, 4m and 4n showed absence of activity at all dose level. These compounds were having log P more than 5 while, compounds 4g found to be active with short duration of action.

Table 5.

Anticonvulsant screening of compounds.

Compounds MES screen Sc PTZ
0.5 h 4 h 0.5 h 4 h
4a 100 300 100 300
4b 300 300 100 300
4c 300 300 --- ---
4d ---- 30 --- ---
4e 100 300 --- ---
4f 100 100 --- ---
4g 30 300 300
4h 300 300 300 300
4i 300 300 300 300
4j --- 300 --- ---
4k --- 100 100 300
4l -- 30 --- ---
4m --- 100 --- ---
4n 300 300 300 300
4o -- 300 --- ---
Phenytoin 30 30 x x


The Docking Study

Docking study of synthesized compounds 4(a-o) was performed using VLife MDS 4.3 package for anticonvulsant activity [34]. With this purpose, crystal structure of the biological target GABA-A receptor (PDB ID: 4COF) [35] was obtained from the Protein Data Bank in order to prepare protein for docking study. Docking procedure was followed using the standard protocol implemented in VLife MDS 4.3 package and synthesized compounds 4(a-o) were docked against three dimensional structure of GABA-A receptor.

Benzothiazepines is an example of bioisosteric replacement of benzodiazepines, enhance the effect of the neurotransmitter gamma aminobutyric acid (GABA) at the GABAA receptor, acts as a positive allosteric modulator by increasing the total conduction of chloride ions across the neuronal cell membrane [36], resulting in sedative, hypnotic (sleep-inducing), anticonvulsant and muscle relaxant properties [37]. Thus, synthesizing compounds have been docked against GABA-A receptor to understand the binding interactions and the data obtained would be very helpful to achieve further modification of lead for greater inhibitory activity. The docking study revealed that the synthesized compounds were held in active pocket by forming various hydrophobic and van der Waal’s interaction with GABA-A receptor. The various hydrophobic interactions formed by synthesized compounds with amino acid residues like THR96, TYR97, PHE98, ASP101, SER104, PHE105, VAL106, LYS112, LEU128, ILE130, and THR132. The compounds have formed various van der Waal’s interactions with amino acid residues like PHE63, GLN65, VAL93, PRO94, THR96, TYR97, PHE98, ASP101, SER104, PHE105, VAL106, HIS107, GLY108, LYS112, ARG114, TYR126, LEU128, ILE130, and THR132. The binding interactions of most active compounds (4a, 4b, 4h, 4i and 4n) with the GABA-A receptor are shown in Fig. (3).

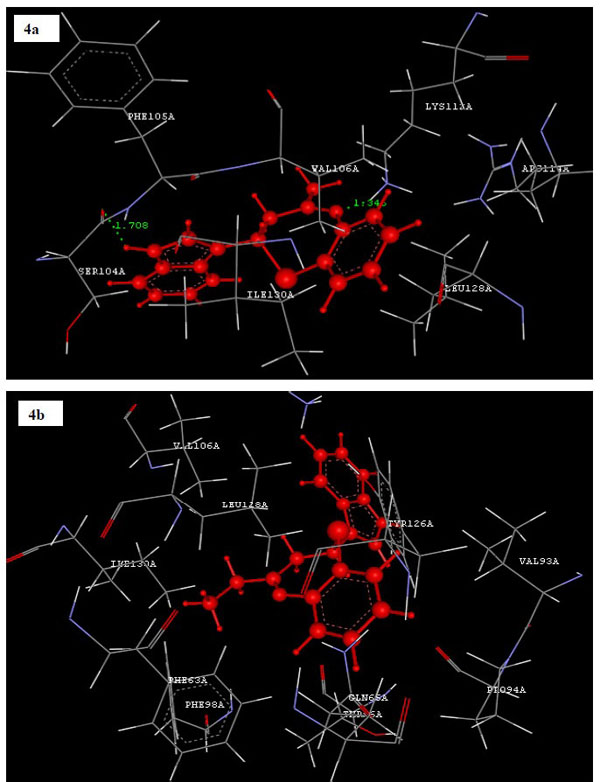

Fig. (3).

Docking images of compounds 4a, 4b, 4h, 4i and 4n with GABA-A receptor (PDB ID: 4COF). Ligands are shown as ball and stick with red color.

The compound 4a had shown good binding interactions with GABA-A receptor and benzothiazepine and indole nucleus were held in active pocket by forming various interactions with amino acids like SER104, PHE105, VAL106, LYS112, LEU128 and ILE130. The both nitrogen atoms i.e. nitrogen of benzothiazepine and indole showed hydrogen bonding with amino acids LYS112 (1.34 Å) and SER104 (1.70 Å), respectively. The –CH3 group was also held into the active pocket by forming the hydrophobic interaction with amino acid LYS112. The compound 4b was held in active pocket by forming various hydrophobic and van der Waal’s interactions with amino acids like PHE63, GLN65, VAL93, PRO94, THR96, PHE98, VAL106, LYS112, TYR126, LEU128, and ILE130. The –C2H5 group was held in active pocket by forming interactions with amino acid ILE130. The compound had not shown any hydrogen bonding with GABA-A receptor and this may be the reason for less activity of compound 4b than compound 4a.

The compounds 4h, 4i and 4n were equipotent showing the protection in both the model at the dose of 300 mg/kg. The docking of compound 4h with GABA-A receptor showed good binding interactions with amino acid residues like VAL93, PRO94, PHE98, ASP101, SER104, VAL106, LYS112, TYR126, ILE130, and THR132. The 4–OCH3 group of phenyl was held deep into the cavity by forming hydrophobic interactions with amino acids like PHE98, ASP101, SER104, ILE130 and THR132. The sulphur of benzothiazepine ring and oxygen of –OCH3 had formed hydrogen bonding with amino acids LYS112 (2.26 Å) and SER104 (2.45 Å), respectively. The compound 4i was held into active pocket by forming various hydrophobic and van der Waal’s interactions with amino acid residues like PHE98, SER104, PHE105, VAL106, LYS112, LEU128, and ILE130. The sulphur atom of benzothiazepine ring had shown hydrogen bonding with amino acid LYS112 (2.26 Å). The compound 4n has shown various hydrophobic and van der Waal’s interactions with amino acids residues like THR96, TYR97, PHE98, ASP101, SER104, PHE105, VAL106, HIS107, LYS112, and ARG114. The compound 4n had not shown any hydrogen bonding with GABA-A receptor. Both the –OCH3 group of phenyl ring held in active pocket by forming hydrophobic interactions with amino acids TYR97, PHE98 and SER104. Thus, the results obtained (activity data and docking results) support that the compounds 4a, 4b, 4h, 4i and 4n might exert their anticonvulsant action as GABA-A agonist.



All reagents and solvents were used as obtained from the supplier or recrystallized/redistilled unless otherwise noted. Most chemicals purchased were of Merck grade. All chemicals were crystallized or redistilled before use. Silica gel G was used for thin layer chromatography. Melting points were taken in open capillaries using melting point apparatus and are uncorrected. 1H NMR spectra were obtained using a BRUKER AVANCE II 400 spectrometer. Tetramethylsilane was used as an internal standard. Mass spectra were obtained using Time of Flight. The IR spectra were obtained using a JASCO FTIR 4000 spectrometer. Elemental analyses were carried out on FLASHEA 1112 series and observed values were within ± 0.4% of theoretical values for C, H and N. The synthetic microwave oven used was of Scientific Catalyst synthesis (Cata R).

Indole-3-carbaldehyde 2 was obtained as per the given procedure [38]. The product was recrystallized from ethanol to give 9.7g of pale straw crystals. IR (KBr): ν = 3448 cm-1 (NH), 1720 (C = O). – 1H-NMR (CDCl3): δ = 7.2- 8.1 (m, 4H, aromatic protons), 8.2 (s, 1H, C2H- indole), 9.7 (s, 1H, CHO), 10.8 (s, 1H, NH- indole). MS m/z: 145.

General Procedure for the Synthesis of Chalcones 3(a-o).

Chalcone derivatives were synthesized by condensing indole-3-carbaldehyde with various aromatic ketones according to the Claisen-Schmidt condensation [39] reported in the literature [40, 41]

General Procedure for the Synthesis of Indolyl Substituted Benzothiazepine4a –o

In a borosil beaker, (1.85 g, 0.01 mol) 1-methyl-3-(1H-indol-3-yl)-2-propen-1-one, (1.25 g, 0.01 mol) 2-aminothiophenol and a pinch of zirconium oxy chloride catalyst was taken and mixed uniformly. This reaction mixture was irradiated under microwave for 3 min. After the completion of reaction, the reaction mixture was allowed to attain room temperature and treated with cold water to remove the catalyst. The solid separated was filtered off, washed with water and recrystallized from ethanol to give 75% of 4a, mp 80°C.

Antihypertensive Activity

Adult Sprague- Dawley rats of either sex weighing 200-250 g were used. Animals were housed 4-5 per cage and exposed to a 12 h light-dark cycle. All rats were allowed food and water. Six rats were used for each dose and compound. The control group received 0.2% CMC (0.5 ml/ 100 g i.p.) only. To reduce spontaneous variation in blood pressure animals were adjusted to the experimental cage 3-4 times before the start of the experiment for a period of 30-60 min. changes of blood pressure were measured by using a tail- cuff method. Automatic measurement of systolic blood pressure was provided by a pressure transducer (ML 125/R pulse detector) of Power Lab Data Acquisition System. All test compounds were suspended in 0.2% CMC and administered intraperitoneally (5 mg/kg) in rats.

Behavioural Activity

The activity was measured as digital score using actophotometer with the ip administration of drug (30 mg/kg) to mice. The mice were placed in the box and the behavior was noted for 10 min. Further, the animals were treated with the drug and after 0.5 h and 4 h drug administration the animal were re-tested. The activity score was noted and based on these results, % decrease in locomotor activity was calculated. Diazepam was used as a standard drug.

Anticonvulsant Activity

Male Swiss albino mice (CF-1 strain, 20-30 g) were used as experimental animals. All the test compounds were suspended in 0.5% methyl cellulose in the case of MES and sc PTZ induced seizure models and 30% PEG 200 for behavioral activity at our lab. The animals were maintained at an ambient temperature of 25 ±2oC, in groups of five per cage under standard laboratory conditions, receiving standard laboratory chow and water ad libitum. A 12 h: 12 h light/dark cycle was maintained throughout the experimental studies. All the tests have been performed in accordance with the guidelines laid out by the Institutional Animal Ethics Committee. (CPCSEA Reg. No. CPCSEA/IAEC/Pharm.Chem.06/2011-12).

All the test compounds were administered intraperitoneally in a volume of 0.01 mL/g for mice at doses of 30, 100 and 300 mg/kg. Anticonvulsant activity was assessed after 30 min and 4 h of drug administration. The preliminary anticonvulsants (MES and sc PTZ) evaluations were done using reported procedures using phenytoin as a standard drug.


From the research work under taken and the results obtained it can be concluded that 2-(1H-indol-3-yl)-4-(alkyl/ substituted phenyl)-2, 3-dihydro-1, 5-benzothiazepine derivatives were obtained in solvent-free condition under microwave-irradiation in good yield and in shorter reacton times. These hybrid derivatives possess significant antihypertensive activity and have very good potential for the development as novel antihypertensive agents. The compounds have also shown good CNS depressant activity and anticonvulsant activity, when compared with the standard drug diazepam. Most of the compounds were found to be active in the sc PTZ test. These hybrid heterocyclic compounds thus have shown dual antihypertensive and CNS depressant, anticonvulsant activity and are biologically potential molecules. Molecular docking studies revealed that the investigated compounds had shown good binding interactions with GABA-A receptor and might exert their anticonvulsant activity as GABA-A receptor agonist.


MS  = Mass Spectroscopy
MES  = Maximal Electroshock Seizure
NMR  = Nuclear Magnetic Resonance
Sc PTZ  = Subcutaneous pentylenetetrazole


Supplementary data (1HNMR, 13CNMR, mass, IR spectras of representative compounds) associated with this article can be found.


The authors confirm that this article content has no conflict of interest.


We as the authors are thankful to the Chairman, Maulana Azad Education Trust and Principal Y. B. Chavan College of Pharmacy, Aurangabad, for providing laboratory facility and authors express their gratitude towards SAIF, Panjab University, and Chandigarh for providing Mass and NMR Spectral Analysis and University of Pune for providing elemental analysis of the synthesized compounds.
